Workpiece Tray

Product Overview

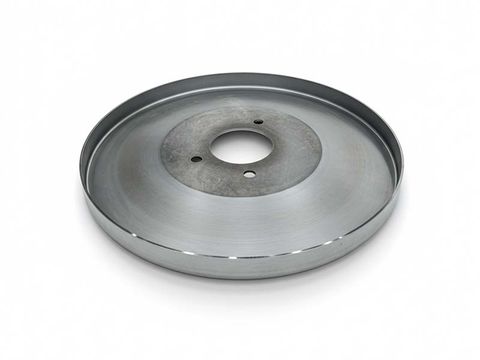

The Workpiece Tray is a precision-engineered metal component manufactured by CNC metal spinning technology, specifically designed for agricultural machinery production, assembly, and material handling operations. Made from Q235B carbon steel, the tray offers high load-bearing capacity, dimensional stability, and long-term durability under demanding workshop and field environments.

1. Industry & Application

• Industry: Agricultural Machinery

• Product Name: Workpiece Tray

• Manufacturing Process: CNC Metal Spinning


2. Material Specification

• Material: Q235B Carbon Steel

• Standard: GB/T 700-2006

• Mechanical Properties:

  • Yield Strength: ≥235 MPa

  • Tensile Strength: 370–500 MPa

  • Elongation: ≥26%

  • Density: 7.85 g/cm³


The selected carbon steel grade ensures excellent structural strength, fatigue resistance, and forming performance, making it suitable for repeated loading and handling operations.

3. Dimensional Parameters

• Thickness: 4.0 mm

  • Thickness Tolerance: ≤ ±0.15 mm

• Overall Size: Ø572 mm × 35 mm (Diameter × Height)

• Dimensional Tolerance:

  • Standard: GB/T 1804-2000, Grade m

  • Roundness: ≤0.3 mm

  • Flatness: ≤0.2 mm/m


4. Surface Quality

• Surface Treatment: None (Bare steel)

• Surface Roughness: Ra ≤ 1.6 μm


The smooth surface finish ensures safe handling, stable stacking, and compatibility with downstream processes such as coating or welding if required.

5. Manufacturing Process

5.1 Core Process

• Process Type: CNC Metal Spinning Forming

• Equipment: CNC Spinning Machine (Model: CNC1250)


5.2 Key Process Parameters

• Spindle Speed: 500–900 r/min

• Roller Feed Rate: 4–8 mm/s

• Single-pass Deformation: 0.8–1.2 mm

• Total Deformation Control: 3.8–4.2 mm


5.3 Auxiliary Process Flow

Material degreasing → Precision leveling (flatness ≤0.2 mm/m) → CNC spinning forming → Mechanical deburring (3000 r/min, 1200# wheel) → Compressed air cleaning → Final dimensional inspection

This process ensures uniform wall thickness, high concentricity, and repeatable dimensional accuracy.

6. Quality Control & Inspection

6.1 Standards Compliance

• ISO 9001:2015 Quality Management System

• GB/T 700-2006 Carbon Structural Steel Standard


6.2 Raw Material Inspection

• Spectrometric chemical analysis

  • C ≤ 0.22%, Mn ≤ 1.4%

  • Element deviation ≤ ±0.05%

• Mechanical property testing

• Ultrasonic testing to ensure no internal defects


6.3 In-process Inspection

• Spinning conformity rate ≥98%

• Coordinate Measuring Machine (CMM) dimensional inspection

• Full-circumference wall thickness inspection (±0.01 mm)

• Edge quality verification (Chamfer radius ≥1.5 mm, no sharp edges)


6.4 Final Inspection

• Sampling inspection per GB/T 2828.1-2012 (AQL 2.5)

• Inspection items: dimensions, surface quality, load-bearing performance

• Qualified products supplied with traceability code and inspection report


7. Production Capacity & Delivery

7.1 Production Capacity

• Daily Output: 60 pcs

• Monthly Capacity: 1,800 pcs

• Supports multi-machine parallel production


7.2 Lead Time

• Standard Orders: 4–7 working days

• Batch Orders (≥100 pcs): 7–10 working days

• Urgent Orders: 2–4 working days (subject to capacity confirmation)


7.3 Packaging & Logistics

• Packaging: Anti-rust paper + pearl cotton + carton + wooden pallet

• Loading: 30 pcs per pallet

• Delivery: Door-to-door logistics (2–5 working days domestic)

• On-site delivery available for agricultural machinery manufacturers


8. Customization Capability

• Size Range: Ø300–1000 mm, Height 20–80 mm

• Material Options: Q355B and other carbon steel grades

• Custom designs based on equipment interface dimensions and operating conditions


9. Application Scenarios

9.1 Primary Applications

Used as a workpiece handling and material support tray in:

• Tractors

• Combine harvesters

• Seeders and other agricultural machinery


Supports component transfer, temporary storage, and assembly operations, improving workshop efficiency and production organization.

9.2 Operating Conditions

• Working Temperature: -20°C to 120°C

• Suitable for dusty, humid field environments and factory workshops

• Rated Load Capacity: ≤500 kg


10. Extended Applications

Also suitable for:

• Construction machinery component trays

• Mining machinery small-part carriers

• Automotive assembly auxiliary trays

• Light-duty logistics and warehouse handling trays


The robust carbon steel structure ensures high stability and long service life across multiple industrial sectors.

11. After-sales Service

• Warranty: 18 months

• Free repair, replacement, or return for quality issues (dimensional deviation, material mismatch, deformation)

• Full technical support including drawings, material certificates, and installation guidance

• Paid services after warranty: repair welding, surface refurbishment, long-term maintenance agreements
