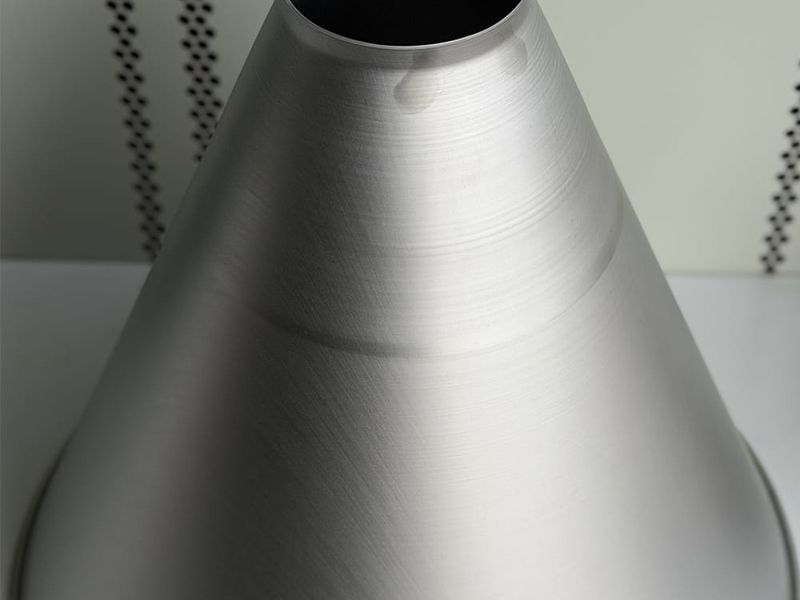

G3020512D Sanitary Food Grade Filling Buckets

Application

Food Processing Machinery

Material

SUS304 Food-Grade Stainless Steel

Core Process

Die Forging Forming. Uses high pressure to induce plastic flow of SUS304 within the mold. Eliminates "Flow Line Stress Concentration" and "Layered Tearing" risks common in standard stamping. Grain flow aligns with stress direction.

Precision Control

Executes "Confirmed Sample" standards. Uses CMM (Coordinate Measuring Machine) for reverse scanning comparison on key surfaces. Dimensional fluctuation controlled within ±0.2mm.

Surface Treatment

Strict roughness control. Internal surface undergoes Food-Grade Electropolishing. Roughness Ra ≤ 0.4μm. Mirror-bright, non-stick, and easy to clean.

Material Adaptability

Strictly controls SUS304 raw material (Nickel content 8%-10.5%). Ensures long-term corrosion resistance against acid/alkali cleaning agents.

Related Case

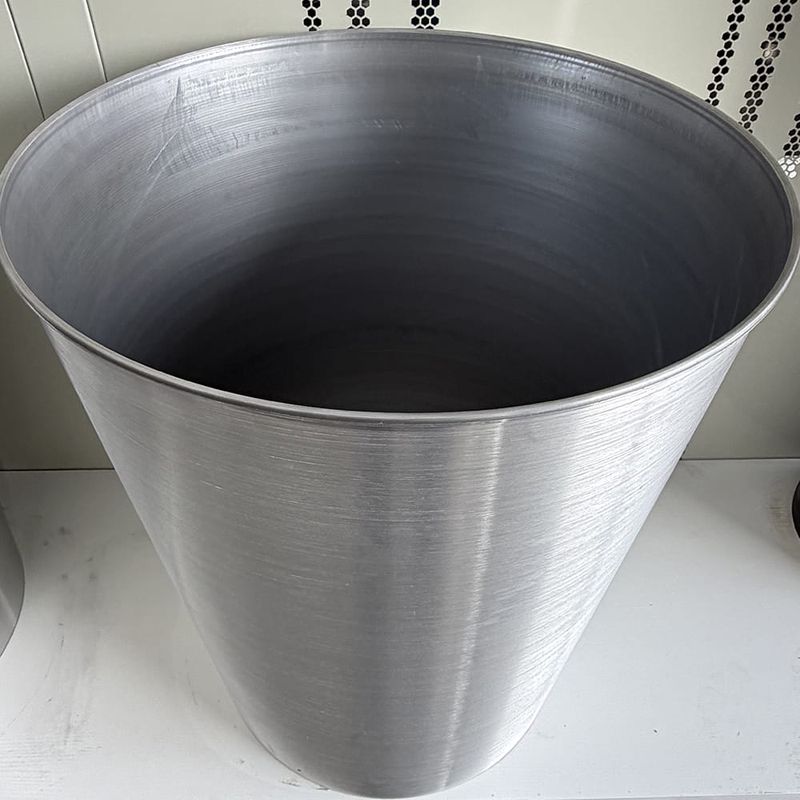

→ Food-Grade Stainless Steel Hopper
